Pascal's Triangle
« on: January 15, 2013, 09:02:51 PM »
http://www.mathsisfun.com/


One of the most interesting Number Patterns is Pascal's Triangle (named after Blaise Pascal, a famous French Mathematician and Philosopher).

To build the triangle, start with "1" at the top, then continue placing numbers below it in a triangular pattern.

Each number is just the two numbers above it added together (except for the edges, which are all "1").


Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

CLICK THE IMAGE BELOW for ALL YOUR TRAVEL NEEDS
trip travel coupon discounts

hubag bohol

  • AMBASSADOR
  • THE SOURCE
  • *****
  • Posts: 89964
  • "Better to remain silent and be thought a fool...
    • View Profile
Re: Pascal's Triangle
« Reply #1 on: January 15, 2013, 09:03:43 PM »




(Here I have highlighted that 1+3 = 4)

Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

hubag bohol

  • AMBASSADOR
  • THE SOURCE
  • *****
  • Posts: 89964
  • "Better to remain silent and be thought a fool...
    • View Profile
Re: Pascal's Triangle
« Reply #2 on: January 15, 2013, 09:06:04 PM »




Diagonals

The first diagonal is, of course, just "1"s, and the next diagonal has the Counting Numbers (1,2,3, etc).

The third diagonal has the triangular numbers

(The fourth diagonal, not highlighted, has the tetrahedral numbers.)

Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

CLICK THE IMAGE BELOW for ALL YOUR TRAVEL NEEDS
trip travel coupon discounts

hubag bohol

  • AMBASSADOR
  • THE SOURCE
  • *****
  • Posts: 89964
  • "Better to remain silent and be thought a fool...
    • View Profile
Re: Pascal's Triangle
« Reply #3 on: January 15, 2013, 09:07:03 PM »




Odds and Evens

If you color the Odd and Even numbers, you end up with a pattern the same as the Sierpinski Triangle.

Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

hubag bohol

  • AMBASSADOR
  • THE SOURCE
  • *****
  • Posts: 89964
  • "Better to remain silent and be thought a fool...
    • View Profile
Re: Pascal's Triangle
« Reply #4 on: January 15, 2013, 09:07:54 PM »

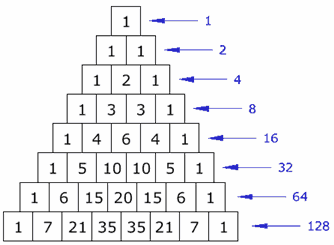

Horizontal Sums

What do you notice about the horizontal sums?

Is there a pattern? Isn't it amazing! It doubles each time (powers of 2).

Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

hubag bohol

  • AMBASSADOR
  • THE SOURCE
  • *****
  • Posts: 89964
  • "Better to remain silent and be thought a fool...
    • View Profile
Re: Pascal's Triangle
« Reply #5 on: January 15, 2013, 09:08:44 PM »
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

hubag bohol

  • AMBASSADOR
  • THE SOURCE
  • *****
  • Posts: 89964
  • "Better to remain silent and be thought a fool...
    • View Profile
Re: Pascal's Triangle
« Reply #6 on: January 15, 2013, 09:11:19 PM »




Fibonacci Sequence

Try this: make a pattern by going up and then along, then add up the values (as illustrated) ... you will get the Fibonacci Sequence.

(The Fibonacci Sequence starts "1, 1" and then continues by adding the two previous numbers, for example 3+5=8, then 5+8=13, etc)

Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

CLICK THE IMAGE BELOW for ALL YOUR TRAVEL NEEDS
trip travel coupon discounts

hubag bohol

  • AMBASSADOR
  • THE SOURCE
  • *****
  • Posts: 89964
  • "Better to remain silent and be thought a fool...
    • View Profile
Re: Pascal's Triangle
« Reply #7 on: January 15, 2013, 09:12:25 PM »




Symmetrical

And the triangle is also symmetrical. The numbers on the left side have identical matching numbers on the right side, like a mirror image.

Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

hubag bohol

  • AMBASSADOR
  • THE SOURCE
  • *****
  • Posts: 89964
  • "Better to remain silent and be thought a fool...
    • View Profile
Re: Pascal's Triangle
« Reply #8 on: January 15, 2013, 09:13:34 PM »
Heads and Tails

Pascal's Triangle can show you how many ways heads and tails can combine. This can then show you "the odds" (or probability) of any combination.

For example, if you toss a coin three times, there is only one combination that will give you three heads (HHH), but there are three that will give two heads and one tail (HHT, HTH, THH), also three that give one head and two tails (HTT, THT, TTH) and one for all Tails (TTT). This is the pattern "1,3,3,1" in Pascal's Triangle.

Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

hubag bohol

  • AMBASSADOR
  • THE SOURCE
  • *****
  • Posts: 89964
  • "Better to remain silent and be thought a fool...
    • View Profile
Re: Pascal's Triangle
« Reply #9 on: January 15, 2013, 09:14:00 PM »
Example: What is the probability of getting exactly two heads with 4 coin tosses?
There are 1+4+6+4+1 = 16 (or 24=16) possible results, and 6 of them give exactly two heads. So the probability is 6/16, or 37.5%

Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

CLICK THE IMAGE BELOW for ALL YOUR TRAVEL NEEDS
trip travel coupon discounts

hubag bohol

  • AMBASSADOR
  • THE SOURCE
  • *****
  • Posts: 89964
  • "Better to remain silent and be thought a fool...
    • View Profile
Re: Pascal's Triangle
« Reply #10 on: January 15, 2013, 09:15:09 PM »
The First 15 Lines

For reference, I have included row 0 to 14 of Pascal's Triangle


                                           1
                                        1     1
                                     1     2     1
                                  1     3     3     1
                               1     4     6     4     1
                            1     5     10    10    5     1
                         1     6     15    20    15    6     1
                      1     7     21    35    35    21    7     1
                   1     8     28    56    70    56    28    8     1
                1     9     36    84    126   126   84    36    9     1
             1     10    45    120   210   252   210   120   45    10    1
          1     11    55    165   330   462   462   330   165   55    11    1
       1     12    66    220   495   792   924   792   495   220   66    12    1
    1     13    78    286   715   1287  1716  1716  1287  715   286   78    13    1
 1    14     91   364   1001  2002  3003  3432  3003  2002  1001   364   91    14    1

Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

hubag bohol

  • AMBASSADOR
  • THE SOURCE
  • *****
  • Posts: 89964
  • "Better to remain silent and be thought a fool...
    • View Profile
Re: Pascal's Triangle
« Reply #11 on: January 15, 2013, 09:16:35 PM »




The Chinese Knew About It

This drawing is entitled "The Old Method Chart of the Seven Multiplying Squares".

It is from the front of Chu Shi-Chieh's book "Ssu Yuan Yü Chien" (Precious Mirror of the Four Elements), written in AD 1303 (over 700 years ago, and more than 300 years before Pascal!), and in the book it says the triangle was known about more than two centuries before that.


8)

Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0
...than to speak out and remove all doubt." - Abraham Lincoln

Book your travel tickets anywhere in the world, go to www.12go.co

BolBuhol

  • EXPERT
  • ***
  • Posts: 2793
  • A-Z alpabit
    • View Profile
Re: Pascal's Triangle
« Reply #12 on: January 15, 2013, 10:09:46 PM »


dinhi gid gagikang unsaom pagbalansi hang mga nomiro na ara gid sang taas, ginag aplay nila daw pera mid gang.




Linkback: https://tubagbohol.mikeligalig.com/index.php?topic=65424.0

BolBuhol

  • EXPERT
  • ***
  • Posts: 2793
  • A-Z alpabit
    • View Profile
Re: Pascal's Triangle
« Reply #13 on: January 15, 2013, 10:10:32 PM »



The Chinese Knew About It

This drawing is entitled "The Old Method Chart of the Seven Multiplying Squares".

It is from the front of Chu Shi-Chieh's book "Ssu Yuan Yü Chien" (Precious Mirror of the Four Elements), written in AD 1303 (over 700 years ago, and more than 300 years before Pascal!), and in the book it says the triangle was known about more than two centuries before that.


8)

a tyori op abakos
